Optimal Settings for RØDECaster Pro II/Duo Virtual Devices

  • Updated

With the recent beta firmware update for the RØDECaster Pro II and RØDECaster Duo has greatly improved their functionality. Users can now route audio from their computers to individual faders, allowing better control over each audio source and simplifying the management of different audio elements during production.

RØDECaster Beta: For more information on how to access the beta firmware on the RØDECaster Series, please sign up for the Beta program here

To access the virtual drivers you'll also need to download the driver on your computer. While there are various combinations of input and output settings available, we will focus on the main three RØDECaster Virtual Drivers combinations that have been requested.

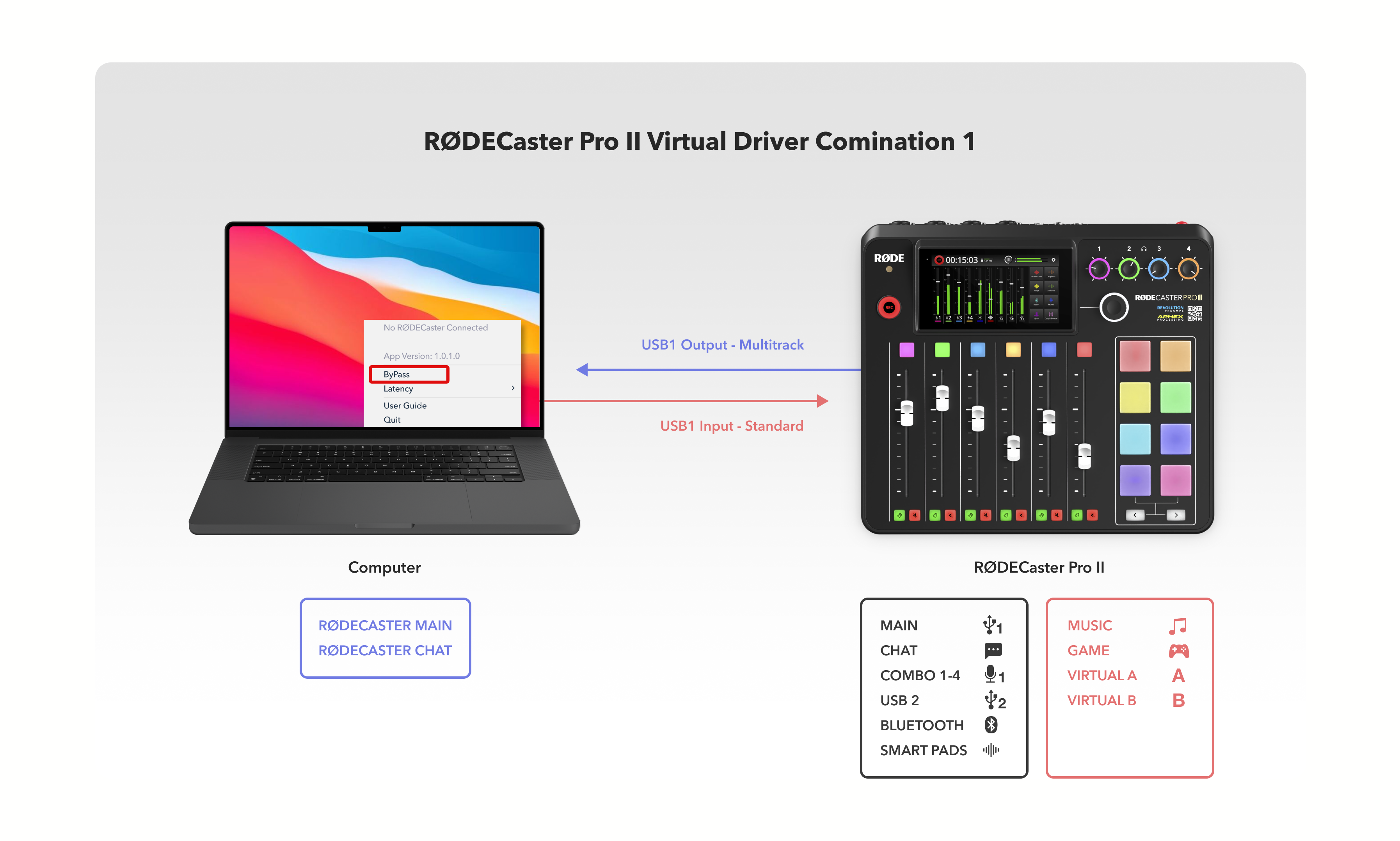

Combination 1: Standard Multitrack

RCP2 Virtual Driver Graphics_01_FA_897x539px.png

USB 1 Output  USB 1 Inputs  Virtual Device Driver  USB 1 Input (From Computer)  USB 1 Output (From RØDECaster)
Multitrack  Standard  Not Bypassed  Chat, Main, Combo 1-4, Bluetooth, USB 2, SMART Pads  Main, Chat



The initial setup is the standard multitrack feature offered by the RØDECaster device. This setup is ideal for users who do not require the advanced features of the virtual drivers but may implement them later on.

With this option, you can capture multiple audio sources simultaneously, making it suitable for traditional Multitrack recording needs. These settings work best for setups for;

  • Music Production
  • Podcasts
  • Other material for Future Upload / Editing
Pro Tip: For details on setting up Multitrack with the RØDECaster Pro II/Duo, please refer to our article here: How to setup Multitrack with the RØDECaster Pro II / Duo



Combination 2: Expanded Inputs

RCP2 Virtual Driver Graphics_02_FA_897x539px.png

USB 1 Output  USB 1 Inputs  Virtual Device Driver  USB 1 Input (From Computer)  USB 1 Output (From RØDECaster)
Stereo  Expanded  Not Bypassed  Chat, Main  Main, Chat, Game, Music, A, B



The second combination is particularly beneficial for users looking to route specific outputs from their computer, such as game audio, music tracks, and system sounds, to individual faders on the RØDECaster.

This setup provides a more tailored audio mixing experience, allowing users to control each audio source independently. These settings work best for setups for;

  • Gamers
  • Content Streamers
  • Live Podcasts



Combination 3: Expanded Inputs & Outputs

RCP2 Virtual Driver Graphics_03_FA_897x539px.png



USB 1 Output  USB 1 Inputs  Virtual Device Driver  USB 1 Input (From Computer)  USB 1 Output (From RØDECaster)
Multitrack  Expanded  Not Bypassed  Chat, Main, Combo 1-4, Bluetooth, USB 2, SMART Pads

Main, Chat, Game, Music, A, B



The final combination offers users the flexibility to select specific inputs and outputs from the RØDECaster.

This option allows you to choose particular microphone combo ports and route audio from your computer to individual faders. With this setup, you can easily manage various audio channels, giving you complete control over your audio production. These settings work best for setups for;

  • Live Music Production
  • Live Podcasts Streaming & Recording


For details on the RØDECaster Virtual drivers, watch the video below:


For more information or questions about our RØDE products, please contact us here.
