Gain staging is a crucial process in audio recording, particularly when working with XLR microphones. It involves managing the levels of audio signals throughout the recording chain to ensure optimal sound quality. Proper gain staging helps to maintain clarity and fidelity, while improper gain staging can lead to unwanted distortion and noise.
Setting the Levels

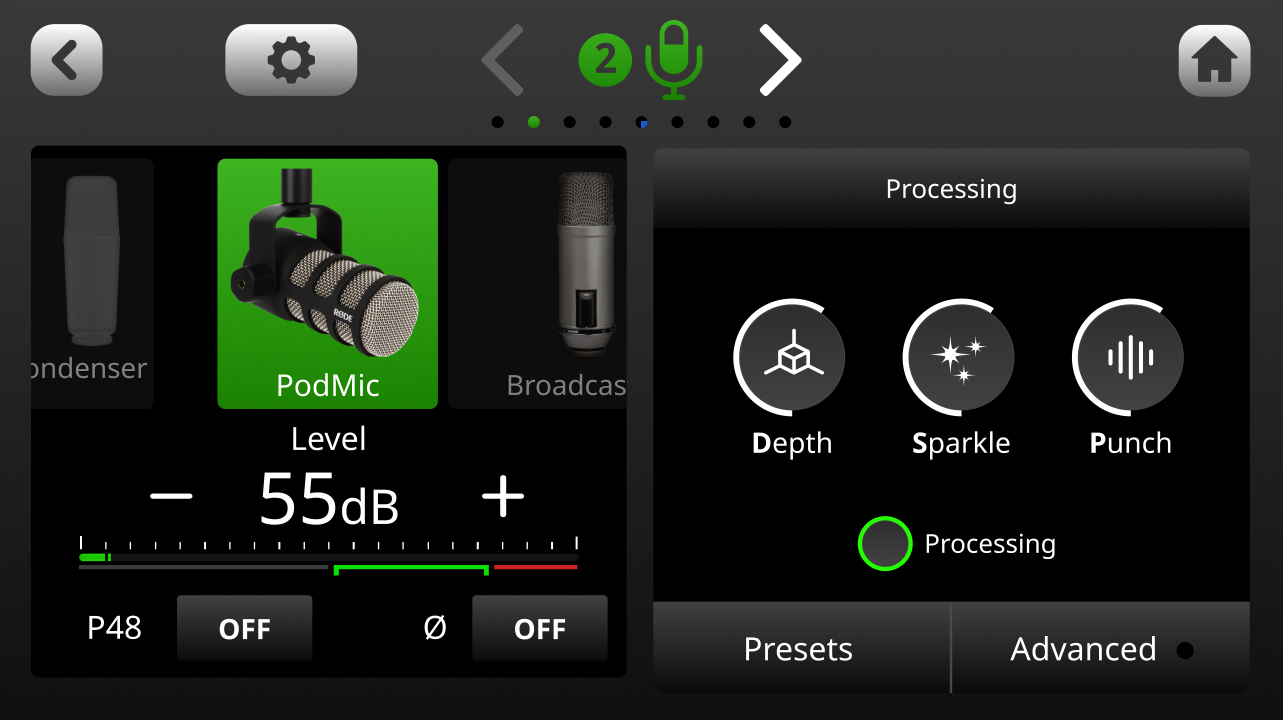

The first step in gain staging is to set the microphone level. When connecting an XLR microphone, it is essential to adjust the preamp gain to a level that captures the sound without clipping.
Clipping occurs when the signal level exceeds the maximum capacity of the equipment, resulting in harsh distortion or saturation. To avoid this, start with the preamp gain at a low setting and gradually increase it while monitoring the input levels on your audio interface or mixer.
- Aim for a strong signal that peaks around -12 to -6 dB, which allows headroom for dynamic performances.
Check Signal Chain
It's important to manage the levels throughout the signal chain. After the microphone preamp, ensure that each subsequent device in the chain, such as compressors, equalizers, and audio interfaces, is also set to appropriate levels.
Each piece of equipment has its own optimal operating range, and exceeding these levels can introduce distortion. Regularly check the meters on your devices to ensure that you are not hitting the red zone, which indicates potential clipping.
Monitor the Audio

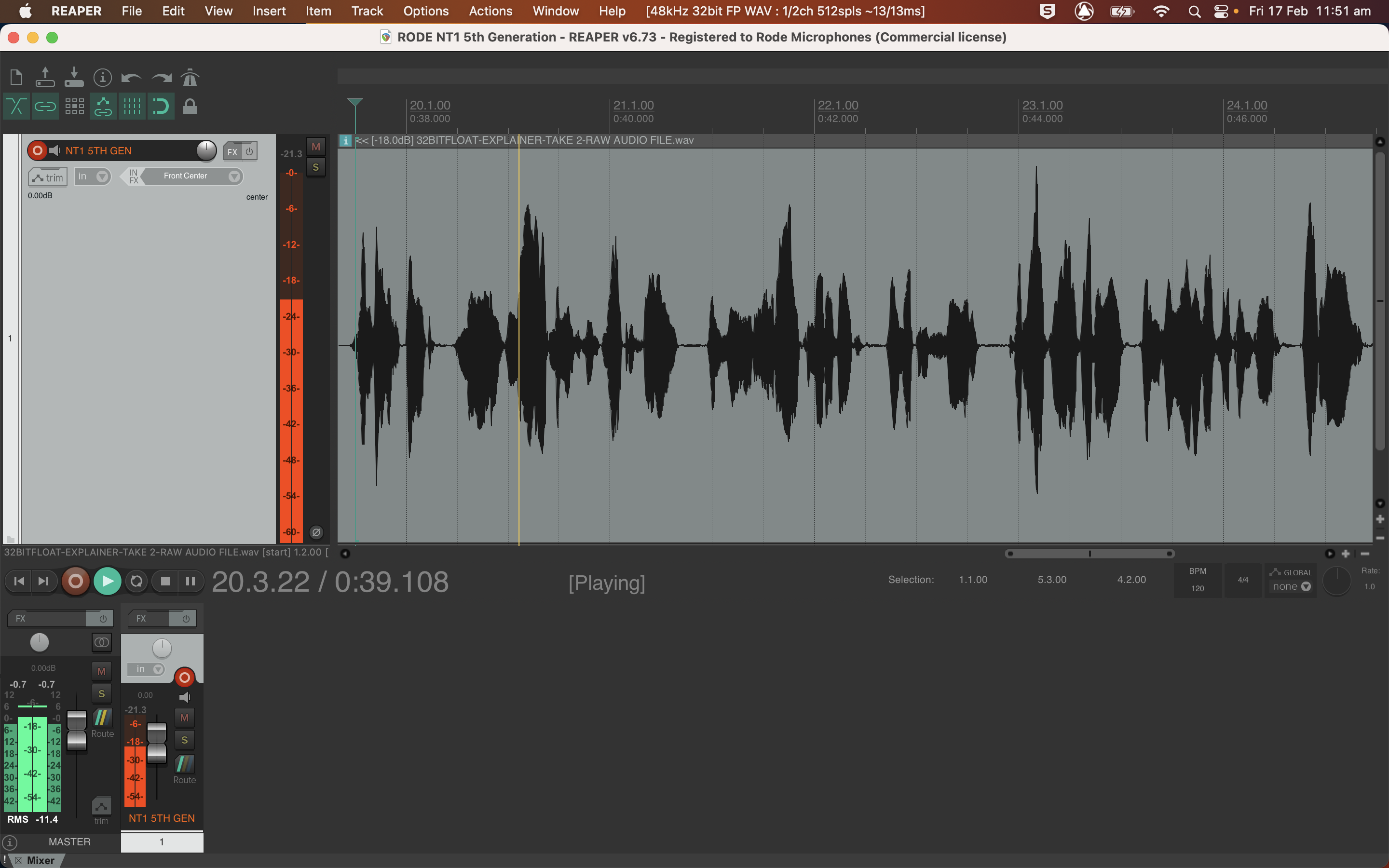

Monitor the output levels before the signal reaches the digital audio workstation (DAW) or software. Whether you are recording to a DAW or a recorder, maintaining proper levels at this stage is vital.
If the output signal is too strong, it can cause distortion during the recording process, leading to a compromised audio quality that is difficult to fix in post-production.
