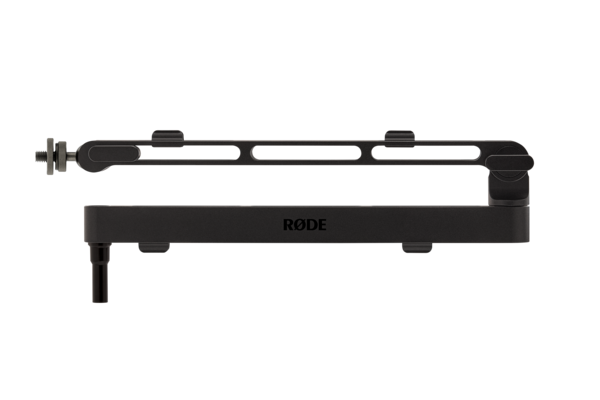

The RØDE LPA1 is designed to support a wide range of microphones and studio equipment using common mounting threads.
It includes a desk clamp for mounting to desks up to 70mm thick and supports equipment weighing up to 2kg (4.4lbs).
Microphone and Equipment Compatibility
The LPA1 supports the following mounting thread sizes:
- 1/4" UNC
- 3/8" UNC
- 5/8" UNS
This allows the LPA1 to accommodate a wide range of end address and side address microphones, as well as other compatible studio equipment.
The maximum supported weight for equipment mounted to the LPA1 is 2kg (4.4lbs).
Desk Compatibility
The included desk clamp can be used with desks and work surfaces up to 70mm thick.
This provides a simple mounting option without requiring the LPA1 to be permanently installed into the desk.
LPA1 Dimensions
| Specification | Measurement |
|---|---|
| Weight | 1650g |
| Length, extended | 750mm |
| Length, folded | 367mm |
| Width | 75mm |
| Height, extended above desk | 525mm |
| Height, folded | 150mm |
| Extended height | 470mm |
| Maximum reach below desk level | 200mm |
Adjustment Range
- Horizontal reach: Up to 750mm
- Upward adjustment: 90°
- Downward adjustment: 60°
- Arm articulation: 360°
